Aluminum Magnesium Insulating Castable Refractory For Steel Drums / Ladle And Tapping Troughs

Name: Aluminum Magnesium Insulating Castable Refractory For Steel Drums Ladle And Tapping Troughs
Brand: Jundao(Henan)
Price: 1 USD

$China Aluminum Magnesium Insulating Castable Refractory For Steel Drums / Ladle And Tapping Troughs factory$ $China Aluminum Magnesium Insulating Castable Refractory For Steel Drums / Ladle And Tapping Troughs factory$

Brand Name : Jundao(Henan)

Model Number : Aluminum-magnesium refractory castables

Certification : ISO9001:2015

Place of Origin : Henan China

MOQ : 20 ton

Price : Negotiate

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 4000 Ton/Month

Packaging Details : Fumigated wooden pallet, plastic or steel bandages strapped and the whole outside is wrapped with thermoplastic film.

Material : Aluminum-magnesium castables

Al2O3 : ≥60%

MgO : ≥8%

B.D : ≥2.40g/cm3

L.C.R : 0～-0.4%

C.C.S : ≥20MPa

Contact Now

The aluminum-magnesium refractory castable with age of 60~80 times

The aluminum-magnesium refractory castable is a refractory castable prepared by using high alumina bauxite clinker as aggregate, high bauxite clinker powder and magnesia as powder, and sodium water glass as binder.

Feature
The aluminum-magnesium refractory castables the average age of ladle is 60~80 times, and the consumption of refractory materials per ton of steel is reduced by about 70% compared with clay-coated steel bricks.

Application
The aluminum-magnesium refractory castable is mainly used for the inner lining of steel drums, ladle and tapping troughs, and has been widely used in the ladle for medium and small die casting.

Brands		LMJ-70	LMJ-65	LMJ-60
Al2O3/%		≥70	≥65	≥60
MgO/%		≥8	≥8	≥8
Bulk density after drying (110℃x24h)/MPa / g/cm3		≥2.65	≥2.50	≥2.40
Linear change rate after drying (110℃x24h)/%		0～-0.4	0～-0.4	0～-0.4
Bending strength after drying (110℃x24h)/MPa		≥7.5	≥7.5	≥7.5
Cold crushing strength after drying (110℃x24h)/MPa		≥30	≥25	≥20
Setting time /min	Initial setting time	≥45	≥45	≥45
Setting time /min	Final setting time	≤720	≤720	≤720
The highest operating temperature /℃		1730	1700	1680
Application	Used for integral lining of ladle, hot metal ladle and tapping trough.

Product Tags:

kiln lining materials

castable refractory material

$China Aluminum Magnesium Insulating Castable Refractory For Steel Drums / Ladle And Tapping Troughs factory$

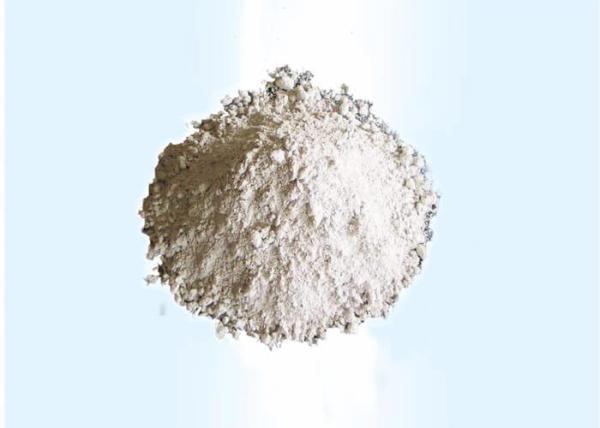

Aluminum Magnesium Insulating Castable Refractory For Steel Drums / Ladle And Tapping Troughs Images
